Ballistic Perimeter Defense Protective protection Security Fortification Barrier 5mm Wire Bastion Gabion Wall Sand Filled For Flood Retaining Wall
Description of HESCO Barrier Bastion:
defense barrier/fortress is a structure capable of resisting the shock wave of an explosion, and they can limit the destructive effects of an explosion to a certain extent. Compared to reinforced concrete Hesco Bastions, it has the advantage of being easily loaded and unloaded for its weight, recyclable and reusable. Hesco Fortresses utilize a perfect combination of welded gabions and geotextiles to serve as temporary or semi-permanent embankments or blast walls against explosions or small arms.
|
|
|
|
|
|
|
|
|
WT-2201
|
4'6" (1.37m)
|
3'6" (1.06m)
|
32'9" (10m)
|
5+4 cells
|
|
WT-2202
|
2' (0.61m)
|
2' (0.61m)
|
4' (1.22m)
|
2 cells
|
|
WT-2203
|
3'3" (1.00m)
|
3'3" (1.00m)
|
32'9" (10m)
|
5+5 cells
|
|
WT-2204
|
3'3" (1.00m)
|
5' (1.52m)
|
32'9" (10m)
|
5+5 cells
|
|
WT-2205
|
2' (0.61m)
|
2' (0.61m)
|
10' (3.05m)
|
5 cells
|
|
WT-2206
|
5'6" (1.68m)
|
2' (0.61m)
|
10' (3.05m)
|
5 cells
|
|
WT-2207
|
7'3" (2.21m)
|
7' (2.13m)
|
91' (27.74m)
|
5+4+4 cells
|
|
WT-2208
|
4'6" (1.37m)
|
4' (1.22m)
|
32'9" (10m)
|
5+4 cells
|
|
WT-2209
|
3'3" (1.00m)
|
2'6" (0.76m)
|
30' (9.14m)
|
6+6 cells
|
|
WT-2210
|
7'3" (2.21m)
|
5' (1.52m)
|
100' (30.5m)
|
5+5+5+5 cells
|
|
WT-2211
|
4' (1.22m)
|
12" (0.30m)
|
4' (1.22m)
|
2 cells
|
|
WT-2212
|
7' (2.13m)
|
3'6" (1.06m)
|
108' (33m)
|
5+5+5+5+5+5 cells
|
|
WT-2213
|
9' (2.74m)
|
3'6" (1.06m)
|
10'5" (3.18m)
|
6 cells
|
All specifications can be customized according to your requirements.
Contact me for more details and quality quotation.
|
Quick View of HESCO Barrier:
Material: Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Hole : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size: 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before welding
The Hesco barriers come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Example dimensions of typical configurations are 1.4m x 1.1m x 9.8m (4'6" x 3'6" x 32') to 2.1m x 1.5m x 30m (7' x 5' x 100').
Application:
1. Flood Control.
Most of People used the HESCO Barrier as the bulwark all over the river, unfold it and filled with sand or earth, instad of sandbags, it is easy to operate and efficacious.
2. Military Defence
Most of army used HESCO Barrier for protection, because the bullet can not penetrate it easily, it can prevent explosion, and not easy to destroied.
3. Hotel Pretection
A lot of Superior Hotel used HESCO Barrier as the protection wall outside, safety, and beautiful.
Assembly
Assembling the Hesco Bastion entails unfolding it and (if available) using a front end loader to fill it with sand, dirt or gravel. The placement of the barrier is generally very similar to the placement of a sandbag barrier or earth berm except that room must generally be allowed for the equipment used to fill the barrier. The main advantage of Military Barrier, strongly contributing to their popularity with troops and flood fighters, is the quick and easy setup.
Previously, people had to fill sandbags, a slow undertaking, with one worker filling about 20 sandbags per hour. Workers using Military Barrier and a front end loader can do ten times the work of those using sandbags.
The Hesco Barrier come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Example dimensions of typical configurations are 4'6" x 3'6" x 32' (1.4m x 1.1m x 9.8m) to 7' x 5' x 100' (2.1m x 1.5m x 30m).

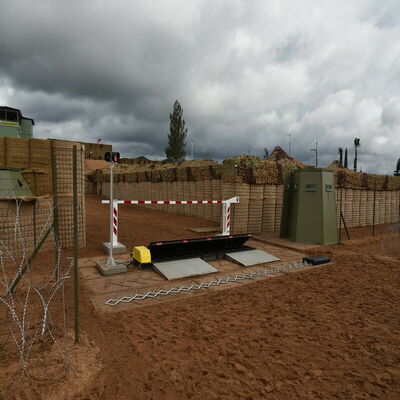

The hesco bastion is a modern gabion primarily used for flood control and military fortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms. It has seen considerable use in Iraq and Afghanistan,Dominican Republic, Afghanistan, Iraq, USA, France, Kenya, Iran, Saudi Arabia, Italy, Germany.Pakistan, Kazakhstan, Mali, Burkina Faso, Ghana, Mozambique
