5mm Welded Galvanized Galfan Wire Hesco Bastion Defensive Barriers Blast Wall Hesco Barrier Price
The Hesco Barrier Guard Tower is constructed from galvanized welded boxes, combining rectangular mesh wire with canvas-draped panels to create versatile base defense structures. These units serve as essential building blocks for military and police security installations.

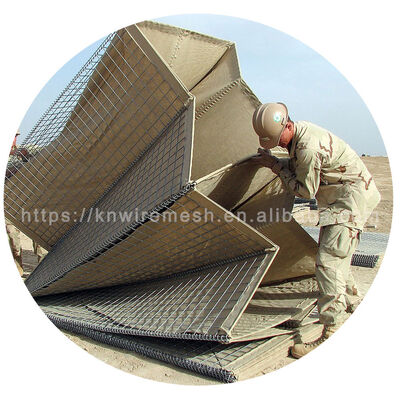

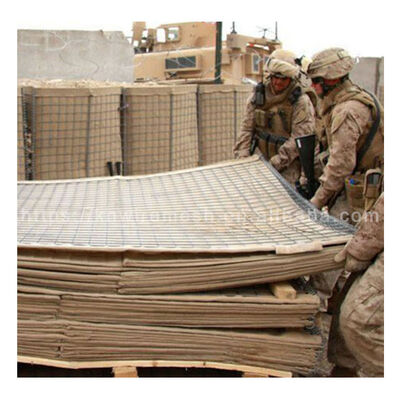

Designed for rapid deployment, these barriers can be installed by just 2-3 personnel, making them ideal for creating shelters or guard towers quickly in field conditions.
The Dimension / Specification for Military HESCO Barrier price:
| Wire Diameter: |
5.0mm (Standard), 4.0mm |
| Mesh Hole: |
76.2*76.2mm (Standard), 80*80mm |
| Diameter of Spring: |
4.0mm |
| Diameter of Joint Pin: |
4.0mm |
| Cells per Set: |
1 cell, 2 cells, 3 cells, 4 cells, 5 cells |
| Color of Geotextile: |
Military Green, Beige, Brown, Sand Color |
| Weight of Geotextile: |
300GSM (Standard) |
The Size Sheet for Military HESCO Barrier:
| MODEL |
Height |
Width |
Length |
NO. of Cells |
| KN-1 |
4'6"(1.37M) |
3'6"(1.06M) |
32'(10M) |
9 cells(1*4, 1*5) |
| KN--2 |
7'(2.1M) |
3'6"(1.06M) |
108'(33M) |
30 cells(6*5) |
| KN--3 |
2'(0.61M) |
2'(0.61M) |
4'(1.21M) |
2 cells |
| KN--4 |
3'3"(1.0M) |
3'3"(1.0M) |
32'(10M) |
10 cells(2*5) |
| KN--5 |
2'(0.61M) |
2'(0.61M) |
10'(3.05M) |
5 cells |
| KN--6 |
5'6"(1.68M) |
2'(0.61M) |
10'(3.05M) |
5 cells |
| KN--7 |
7'3"(2.21M) |
7'(2.13M) |
90'(27.74M) |
13 cells(2*4,1*5) |
| KN--8 |
4'6"(1.37M) |
4'(1.22M) |
32'(10M) |
9 cells(1*4, 1*5) |
| KN--9 |
3'3"(1.0M) |
2'6"(0.76M) |
30'(9.14M) |
12 cells(2*6) |
| KN--10 |
7'(2.12M) |
5'(1.52M) |
95'(30.5M) |
20 cells(4*5) |
| KN--11 |
3'3"(1.0M |
3'3"(1.0M) |
3'3"(1.0M) |
1 Cell |
| KN--12 |
7'3"(2.21M) |
7'3"(2.21M) |
7'3"(2.21M) |
1 Cell |
The Detailed Explanation of Application for HESCO Barrier:
1. Flood Defense for Communities
-
City Protection: During the 2019 Watertown, South Dakota floods, Hesco barriers were deployed to safeguard the city from rising waters
-
Mobile Home Parks: In Iowa City, a mile-long Hesco flood wall was installed to protect Cole and Thatcher Mobile Home Parks
-
Airport Security: Bangkok's Don Mueang Airport used Hesco barriers during severe flooding, erected by the Royal Thai Army
-
Urban Infrastructure: Many cities use them to protect utilities, subway entrances, and critical infrastructure during flash floods
2. Coastal & Riverbank Erosion Control
-
Waterfront Homes: Protect properties from shoreline erosion, reducing soil loss by up to 90%
-
Riverbanks: Tested effective on 35° inclines, stabilizing slopes prone to washing away
-
Marsh & Beach Protection: The original design purpose (created by British ex-miner Jimi Heselden) was for coastal erosion control
-
Lakeside Development: Used to prevent shoreline collapse in residential areas along lakeshores
3. Construction & Industrial Applications
-
Worksite Perimeters: Create secure fencing around construction sites that resists wind and falling debris
-
Sound Barriers: Instant noise reduction walls along residential construction zones
-
Traffic Management: Temporary barriers for highway construction, directing vehicles safely around work zones
-
Industrial Safety: Separate hazardous zones in manufacturing plants while containing pollutants
-
Warehouse Protection: Defend storage facilities from flood damage during rainy seasons
The Advantages for HESCO Barrier:
1. Collapsible
It is assembled by Panel and Spring Wire, When Loading and transportation, It is Foldable into one piece.
2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.
3. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finish it.
4. Quick Displacements
When you want to use it in another place,Just to move it, It can use many times
5. Easy to repair
If some part is destroyed, Just left it and connect the new one is okay.
