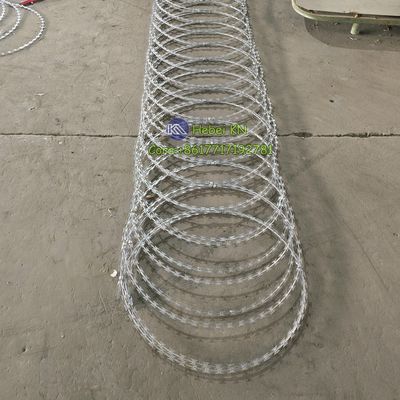

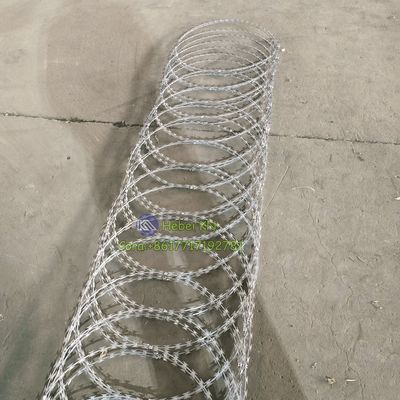

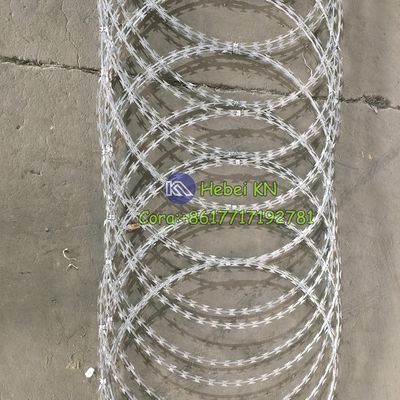

Ukrain Hot Dipped Galvanized Egoza BTO-16 1100mm Diameter Razor Wire for Border Protection Fence
Egoza BTO-16 razor wire, featuring a 1100mm outer diameter and premium hot-dip galvanization, stands as a benchmark in high-security perimeter protection systems, engineered to deliver uncompromising deterrence and long-lasting performance across the harshest operational environments.
Crafted with high-carbon steel core wire and precision-punched 0.5mm-thick razor blades—each boasting 16mm-long barbs spaced at 30mm intervals—this concertina-style barrier combines exceptional tensile strength (exceeding 1600N) with a rugged zinc coating (50-100μm thickness) that ensures corrosion resistance and a service life of over 25 years, outperforming standard galvanized alternatives in coastal, industrial, and extreme climatic conditions.
Beyond its structural robustness, the BTO-16's optimized blade geometry and 1100mm diameter coil design create a 360-degree defensive barrier that delivers intense visual deterrence while remaining streamlined for efficient on-site deployment, making it the preferred choice for military installations, border security, energy infrastructure, and high-value facility perimeters requiring ISO 9001-certified reliability.
Below are its detailed technical parameters and application characteristics:
- Blades: Made of hot-dip galvanized steel sheets (complying with ASTM A641 standards) or stainless steel sheets (304/316 grade) with a thickness of 0.5mm ± 0.05mm. They are precision-stamped into shape, featuring edge sharpness like a blade.
- Core Wire: High-strength galvanized steel wire with a diameter of 2.5mm ± 0.1mm (tensile strength: 450-500MPa), providing overall support and anti-stretching performance.
- Surface Treatment: Hot-dip galvanized layer with a thickness of 90-275gsm, passing a 1000+ hour salt spray test to ensure no rusting for over 10 years in harsh environments (e.g., humidity, high salt). Some models offer PVC coating (thickness: 0.8-1.2mm) to further enhance UV resistance and anti-aging performance.
- Cross-Type Configuration: Two adjacent barbed razor wires are cross-wound and fixed with iron clips, forming a dense diamond mesh structure that effectively prevents climbing and cutting.
- Standard Dimensions:
- Single roll length: 7-16 meters (customizable)
- Outer diameter range: 450-960mm
- Blade spacing: 26-100mm (e.g., Model BTO-12: 26mm; Model CBT-60: 100mm)
- Blade specifications: Available in models like BTO-12/BTO-18/BTO-22/CBT-60/CBT-65, with blade length 12-65mm and width 13-32mm.
Types of Razor Wire:
Razor Wire Fence
Concertina Razor Coils
Razor Wire Flat Wrap Coils
Welded Razor Wire
Razor Ribbon
Razor Wire Mobile Security Barrier
Galvanized Razor Wire
Straight Line Razor Wire Fence
Stainless Steel Razor Wire
Razor Wire Concertina
Double Concertina Razor Wire
Specification:
| Reference Number |
Thickness
(mm)
|
Wire Dia
(mm)
|
Bard Length
(mm)
|
Bard Width
(mm)
|
Bard Distance
(mm)
|
| BTO-10 |
0.5±0.05 |
2.5±0.05 |
10±1 |
13± |
16±1 |
| BTO-12 |
0.5±0.05 |
2.5±0.05 |
12±1 |
15±1 |
26±1 |
| BTO-16 |
0.5±0.05 |
2.5-2.8 |
16±1 |
19±1 |
30±1 |
| BTO-18 |
0.5±0.05 |
2.5±0.05 |
18±1 |
15±1 |
33±1 |
| BTO-22 |
0.5±0.05 |
2.5±0.05 |
22±1 |
15±1 |
34±1 |
| BTO-28 |
0.5±0.05 |
2.5±0.05 |
28±1 |
15±1 |
53+1 |
| BTO-30 |
0.5±0.05 |
2.5±0.05 |
30±1 |
21±1 |
54±1 |
| CBT-60 |
0.5±0.05 |
2.5±0.05 |
60±1 |
32±1 |
100±1 |
| CBT-65 |
0.5±0.05 |
2.5±0.05 |
65±1 |
21±1 |
100±2 |
Razor Barbed Wire Coil and Unit Loops
| Outside Diameter |
No.of Loops |
Standard Length Per Coil |
Type |
Notes |
| 450mm |
33 |
8M |
CBT-65 |
Single coil |
| 500mm |
41 |
10M |
CBT-65 |
Single coil |
| 700mm |
41 |
10M |
CBT-65 |
Single coil |
| 960mm |
53 |
13M |
CBT-65 |
Single coil |
| 500mm |
102 |
16M |
BTO-10.15.22 |
Cross type |
| 600mm |
86 |
14M |
BTO-10.15.22 |
Cross type |
| 700mm |
72 |
12M |
BTO-10.15.22 |
Cross type |
| 800mm |
64 |
10M |
BTO-10.15.22 |
Cross type |
| 960mm |
52 |
9M |
BTO-10.15.22 |
Cross type |
Details of Razor Wire:
Workshop:
Above is our No.3 workshop, producing BTO-16, Packed with wooden box. daily output is 1/40HQ.
Packing & Delivery:
1. sheet is packed by pallet or strapped into bundle.
2. sheet in carton or wooden case.
3. rolls in water-proof paper+plastic film.
Razor Wire and Perimeter Security:
Detection at the perimeter enables security personnel to quickly assess and respond to security events while intruders remain delayed or caught up in the razor wire. Any attempt to cut, bypass or disturb the razor wire is immediately detected.
