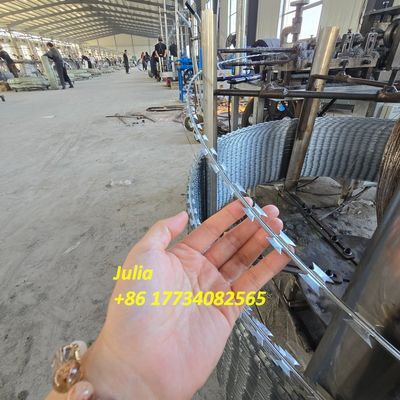

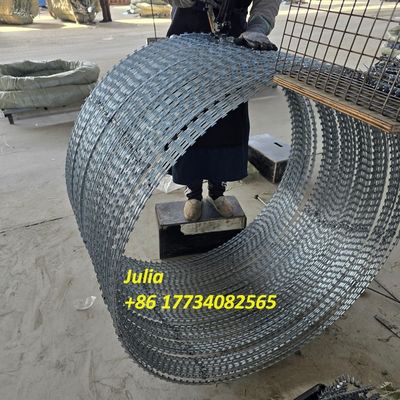

BTO 16 Razor Barbed Wire EGOZA Security Fence Barrier For Perimeter Protection
Barbed Tape Barrier EGOZA
For the barrier security fence type "EGOZA"(Coil diameter: 1100 mm +/- 20 mm;
Number of connection points per coil: 7;
Number of turns: at least 100;
Wire diameter: 2.8-3.0mm;
Deployment length: 20-25 m (or equivalent);
Coil diameter in transport form,mm: At least 1100 +20
Coil diameter in working form,mm: At least 900
Number of connection pointsper coil (number of clips): 7
Number of turns in the coil : At least 100
Main wire diameter, mm :2.8-3.0
Wire galvanized steel 80g/m
Recommended deployment Length :20 m
Maximum deployment length : 25m
Blade shape of barbed tape :Aggressive, base
radius of theblade curvature
Coil weight :Up to 33-35 kg
Connecting clips : Made of galvanized steel
EN10346, width at least 10 mmthickness at least 1.5 mm
Zinc coating density of clips: 140 g/㎡
Tape material(cutting blades):Made of carbon
galvanized steel EN 10346,thickness 0.5-0.55mm
Blade length of barbed tape:16-17mm
Barbed tape width:At least 19 mm
Central strip width of barbedtape for wire
clamping:At least 7.5 mm
Tooth spacing of barbed tape:No more than 30 mm
Zinc coating density of barbedtape:140 g/m
Zinc wire standard:According to EN50189 or EN 10244-2 with
a coating density of at least 80 q/mz hot-dip galvanizing (ESEN-10264-2(DIN 48200 or DIN 2078)
Temporary tensile strength:At least 1600 N/mm
Year of manufacture:2025
Warranty period:Storage-5(five) yearsOperation -3 (three) years
At What Price Can You Buy Concertina Wire ?
The price at which you can buy concertina wire barriers depends on many factors. The purchase price of concertina wire is affected by the diameter and type of razor wire, the diameter of the concertina wire barriers, the number of clips per concertina coil. The wholesale price at which you can buy concertina wire from us is significantly less than the retail price of this type of security barrier
Concertina Wire Buy
Concertina wire is a modern type of razor wire barrier, designed with coils connected by special clips to form an accordion-like structure. This innovative design ensures exceptional durability, high resistance to tampering, and maximum security. Concertina wire is widely used for securing private properties, industrial sites, warehouses, construction areas, and high-security facilities.
No matter where you are located, concertina wire offers an effective and reliable solution for perimeter protection.
Product Description
Razor wire is also named concertina coils or razor type barbed wire. it is a kind of modern security fencingmaterials, made of hot-dipped galvanized steel sheets or stainless steel sheets. And we can produce all kinds ofrazor barbed wire such as straight type razor wire, concertina coils, crossed type and flat type etc.
Razor barbed wire, also known as blade barbed wire or blade barbed fence, is a new type ofprotective net.
Razor barbed wire kinds: Single coil razor barbed wire, Cross razor barbed wire, Concertina Razorbarbed wire, Flat warp razor barbed wire, Razor barbed wire fence, Welded razor wire panel.
Categories:
Razor Barbed Wire is roughly divided into spiral, straight line, spiral cross type three forms.Blade thorn rope according to different installation methods can be divided into:
1. (snake belly) spiral blade thorn rope,
2. linear blade thorn rope,
3. flat blade thorn rope,
4. blade thorn rope welding net and so on.
Packing & Delivery
Transport in wound form.Both inside and outside are wrapped in plastic film wooden cases or wooden basket, and can also be packed according to your requirements.
Company Profile
HEBEI KN WIRE MESH COMPANY Professional production for 15 years, is acompany integrating trade and manufacturing, and a professional manufacturerengaged in the research,development, production, sale and service of WeldedGabion Box, Weave gabion basket , In recent years, our company has introduceda series of advanced equipment including welded wire mesh machine,CuttingMachine,Bending machine,air pump,Punching machine. We have strongtechnical strength,scientific management and complete inspection means toguarantee iron wire products of high grade .We will with the most preferentialprice,best quality in the face of the customer.
In addition, we have obtained lSO EU CE certificates. Selling well in allcities and provinces around China, our products are also exported toclients in such countries and regions as Britain, France, Germany,USA,UK Kenya, Zambia,Malaysia, Yemen, Philippines, Thailand, Korea,New Guinea, Greece, Mexico
Specification
| Outside Diameter |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
| 450mm |
33 |
7-8m |
CBT-60/65 |
Single coil |
| 500mm |
56 |
12-13m |
CBT-60/65 |
Single coil |
| 700mm |
56 |
13-14m |
CBT-60/65 |
Single coil |
| 960mm |
56 |
14-15m |
CBT-60/65 |
Single coil |
| 450mm |
56 |
8-9m |
BTO-12/22/25/30 |
Cross type |
| 500mm |
56 |
9-10m |
BTO-12/22/25/30 |
Cross type |
| 600mm |
56 |
10-11m |
BTO-12/22/25/30 |
Cross type |
| 600mm |
56 |
8-10m |
BTO-12/22/25/30 |
Cross type |
| 700mm |
56 |
10-12m |
BTO-12/22/25/30 |
Cross type |
| 800mm |
56 |
11-13m |
BTO-12/22/25/30 |
Cross type |
| 900mm |
56 |
12-14m |
BTO-12/22/25/30 |
Cross type |
| 960mm |
56 |
13-15m |
BTO-12/22/25/30 |
Cross type |
| 980mm |
56 |
14-16m |
BTO-12/22/25/30 |
Cross type |
