Putanka Wire MZP Barrier Tank Barrier Low Visibility Obstacle Mesh Barrier Fence
Product Specifications
| Attribute | Value |
| Material | 0.5mm, 0.6mm, 0.8mm, 0.9mm Steel Wire, Strong |
| Wire Thickness | 0.5 - 0.8 mm |
| Brand Name | HEBEI KN |
| Delivery Time | 7 days per 40ft Container |
| Surface Treatment | Oil Protection, Water proof paper, Shrink Film |
| Product Name | Low Visible Wire, Invisible Wire Mesh, MZP, MPP |
| SIZE | 10x10x1.1-1.4 or 10x5x1.1-1.4m |
| Type | More Grands |
| MOQ | 100 SET |
| Key Words | low-visibility wire mesh, MZP, MPP |
| Sample | Available |
| Package | oil protection, shrink film |
| Weight | 26-30kgs |
Product Description
A low-visibility wire fence (tangle) is a serious obstacle for wheeled and tracked vehicles. When you need a barrier that does its job without announcing its presence, low visibility wire is the solution. Engineered with thin, high-tensile wires and advanced non-reflective coatings, this system keeps your perimeter secure while remaining virtually undetectable to the untrained eye.
Rings are woven from galvanized or non-galvanized high-carbon wire GOST 7372-79 with a diameter of 0.5; 0.6; 0.8 and 0.9 mm.
Ring garlands are interconnected by wire twists from annealed wire with a diameter of 0.5-0.6 mm (GOST 3282-74). Pegs for fastening, rings for them are made from low-carbon wire.
What happens when you hit an inconspicuous obstacle?
If a person attempts to pass through the territory, they become entangled in it. Without outside help, it is impossible to escape from the tangle. Therefore, the offender remains safely waiting for the guard on the spot.
When armored vehicles or tanks pass through, the machine wraps around the wheels and turns into a pile of metal on the chassis, preventing it from moving further. And it is difficult to remove such a "gift" from the wheels.
Fast Questions & Answers
| When did company foundation: | 2018 |
| Had this company exported to Ukraine? | Yes |
| What Products did this company exported to Ukraine? | Egoza, Putanka |
| How many employees? | 820 |
| What is daily output of MZP (Putanka) / Low Visible Wire Barrier? | around 800 pcs |
| How many containers can export per Month? | 4-8 pcs |
| Is this company a factory? or trading company | Factory, but can export |
| What is the company's revenue? | CNY71,550,000 |
| Which seaport can export? | Qingdao, Tianjin, Ningbo etc |
| How many years did Cora work in this factory? | 7 years |
Product Details
Mainly use 0.5 -0.9mm thinner steel wire, after weaving by hand, with 25 grands, 30 circles, to form a complex wire barrier. After unload, it is 3D mesh barrier, with a size 10m long, 10m width, and 1.1-1.4m height. Use pin and rings to install and fix.
0.5-0.9mm wire thickness:
Weight per set:
Accessories:

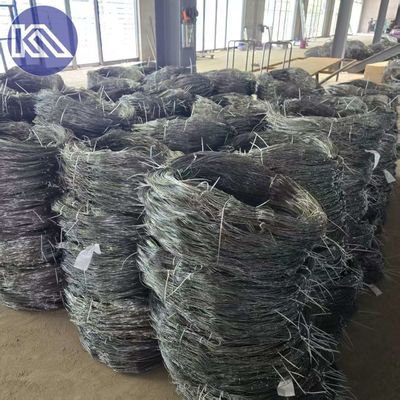

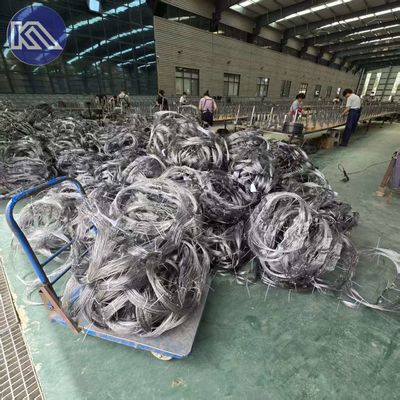

Workshop:
Specification Size List of Low Visible Wire
| Open Size (M) | Weight (KG) with ps and rings |
| 10 x 10 x 1.1-1.4 | 30 -30.5 kg |
| 10 x 10 x 1.1-1.4 | 26.5 - 27 kg |
| 10 x 5 x 1.1-1.4 | 24.5 - 25 kg |
| Parameter | Meaning |
| Unfolded dimensions | 10x10x1.1-1.4 m |
| Wire diameter / number of garlands | 0.9 mm / 20 pieces
0.8 mm / 20 pieces
0.6 mm / 20 pieces
0.5 mm / 20 pieces
twist - 0.8 mm |
| Folded dimensions | 1.2x0.6x0.8 m |
| Package weight without rings and peg | 29 kg |
| Complete set of the MZP package with rings and pegs | 40 rings + 40 pegs |
Package Protection
a) Oil Protection: First step need to spray oil on the surface of Low Visible Wire Mesh.
b) Water Proof Paper: Second to use water proof paper to protect it
c) Shrink Film: Finally use shrink film to fasten it.
Container Loading
1/40HQ can load around 800 pcs of MZP(MPP) Low visibility wire.
Installation Notes: MZP Low visibility Wire / Anti Tank Wire Barrier
MPP Plutanka is installed by 4-8 people on the ground, on a fence, on a building wall and on the roof of a building or structure.
In the lower tier there are garlands with a large diameter of wire.
The lower rings of the inconspicuous obstacle are attached to the ground with staples or other devices every 1-2 meters along the perimeter of the barrier.
The upper edge of the MPP Plutanka must be fixed on pegs to add volume and improve the barrier properties.
