Inconspicuous Wire Network 10*10*1.4m Low Visible MZP Putanka Wire Barrier With 30kg For Ukraine Militay
What happens when you hit an inconspicuous obstacle ?
If a person tries to go through into the territory, he gets confused in it. There is no way to get out of the confusion without outside help. Therefore, the offender remains safely waiting for the guard on the spot.
When an armored vehicle or tank passes, the vehicle wraps around the wheels and turns into a pile of metal on the chassis, preventing it from moving further. And it's difficult to remove such a gift from the wheels.
How Putanka Wire Tangled Net Work?
The rings of tangled wire are wrapped around the wheels, preventing them from spinning. If someone jumps over the fence, the MZP gets confused on its feet, preventing it from passing further. There is no way to free yourself. The main task of the wire tangle is to immobilize people and transport on the site, and not to protect the fence from climbing. For better protection of the fence itself, we recommend additionally installing Egoza barbed wire or Jowa barbed wire on the fence.
FAQ:
Q: What is the MZP Type Putanka Mesh Mean?
A: It is a three-dimensional barrier made of rings of high-carbon wire. start from Ukraine Market, used for Military Defensive Barrier.
Q: what is common size of it?
A: the common size is 10*10*1.1-1.4m, 10*5*1.4m, the common weight is 26kg and 30kg.
Q: what is the mainly usage:
A: The task of the entanglement (MZP) is to prevent access to the object. A person falls into a trap of rings and, in most cases, will not be able to get out of it on his own. It takes a lot of time to cut a passage in the obstacle.
MZP Putanka Wire | МЗП Путанка (inconspicuous obstacle, tanglefoot wire, confusion, Rabbit Wire) - a three-dimensional wire barrier made of carbon wire rings. The wire is very thin, so it is almost invisible. The task of the MZP wire of the muddle is to prevent it from approaching the object. A person falls into a trap of rings and, in most cases, will not be able to get out of it on their own. It takes a lot of time to cut a passage in the barrier. A Putanka inconspicuous obstacle is a serious obstacle for wheeled and tracked vehicles. Wire rings are wound around the wheels or tracks and stop the wheels from spinning.
Technical barriers are designed for
※Stopping the advance of the attacker;
※ Slowing down his maneuver
※ Causing him losses in life and equipment;
※ Creating mainly good conditions for the security forces to detain or eliminate the violator.
| Parameter |
Meaning |
| Unfolded dimensions |
10x5x1.4 m |
| Wire diameter / number of garlands; |
0.9 mm / 20 pieces
0.8 mm / 20 pieces
0.6 mm / 20 pieces
0.5 mm / 20 pieces
twist - 0.8 mm |
| Folded dimensions |
1.2x0.6x0.8 m |
| Package weight without rings and peg |
12 kg |
| Complete set of the MZP package with rings and pegs |
40 pieces |

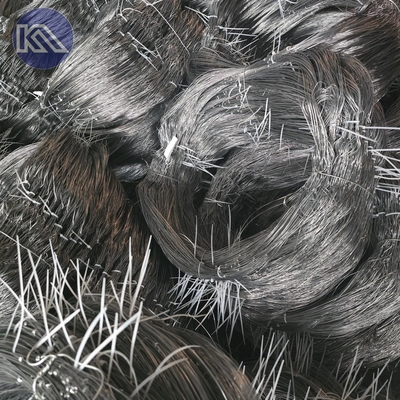

Structure - MZP Low-visibility obstacle
Hebei KN MZP - a four-tiered network of ring garlands. It is installed in the form of a parallelepipped. Wire Rings are made from galvanized or non-galvanized carbon wire GoSTd 7372-79 with a diameter of 0.5; 0.6; 0.8 and 0.9 mm. Ring garlands are (GOST 3282-74). Pegs for fastening, rings for them are made from low carbon wire. interconnected by wire twists of annealed wire with a diameter of 0.8 mm
An inconspicuous obstacle is completed with pegs, rings for mounting a wire fence. You can buy a "putanka" without a set of pegs.
Anti-tank inconspicuous Obstacles Nets is a defense facility mainly used to intercept the movement of tanks or other armored vehicles. Its design and use have played an important role in many wars in history, especially in wartime and post-war conflicts.
Installation of an inconspicuous wire network
The Putanka package is deployed by 3 people in less than 20 minutes. When it is installed in the path of a possible intruder, a volumetric inconspicuous network 5 meters wide and 1.4 meters high is formed. Each package protects at least 10 meters of perimeter.
The Putanki package is deployed by 3 people in less than 20 minutes. When it is installed in the path of a possible intruder, a volumetric inconspicuous network 5 meters wide and 1.4 meters high is formed. Each package protects at least 10 meters of perimeter.
MZP putanka is installed by 4-8 people on the ground, on a fence, wall, roof of a building or structure.
In the lower tier there are garlands with a larger wire diameter.
The lower rings of an inconspicuous obstacle are attached to the ground with brackets and other devices every 1-2 meters along the perimeter of the barrier.
